Name：DPS bridge type stone cutter with 4 pillars
Details

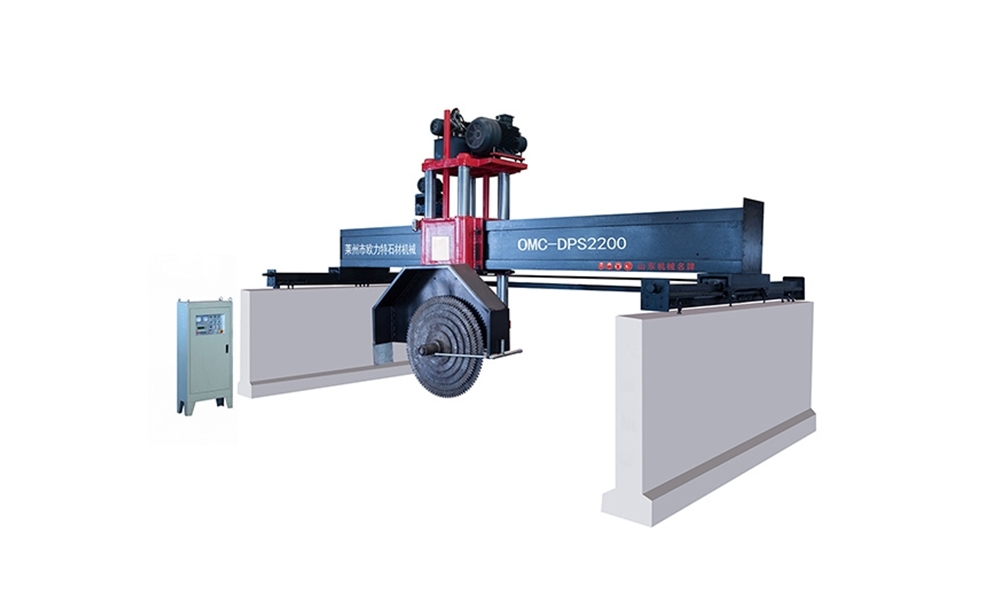

OMC-DPS2200/2600/2800/3000/3200 bridge type multi-blades stone cutter with 4 lead pillars.Working principle.The machine knife moving in left and right direction is controlled by variable-frequency drive(VFD) and the speed will be adjusted depend on the hardness of the stone.The lifter moving up and down is 4 pillars by oil hydraulic pressure cylinder(or by lead screw).The lead pillar is made of high quality solid round steel plated with hard chromium,and the diameter of one pillar reach 180mm,with automatic lubricating.
The anti-wear oil seal sleeve adopts DUPONT PTFE from America.It be rolled in round pit to store the oil so that the machine can go on work in shortage oil supply or no oil supply.It be rolled in factor,excellent performance in abrasion and long working life.
The front and rear moving of blades is driven by high-precision lead screw on the two sides beam.Some key parts comprise of imported accessories with high quality.So the blocks can be put on the ground to cut to save the working table and its maintaining fee.Hence.the stone cutter is featured with high efficiency.high accuracy of blades moving,high stable,easy poerating,the processing slab is high flatness products.
The machine is suitable for cutting high value granite,marble and other block materials.
| Max. diameter of blade （mm） | 2800 | 3000 | 3200 |
| Max. cutting length（mm） | 3700 | 3500 | 3300 |
| Max.cutting width（mm） | 2200 | 2200 | 2200 |
| Max.cutting depth（mm） | 1250 | 1350 | 1420 |
| Max.distance of lifting（mm） | 1400 | 1600 | 1600 |
| Water consumption（m³/h） | 55 | 55 | 75 |
| Total power（KW） | 68 | 68 | 68 |
| Weight（kg） | 17000 | 17500 | 18000 |
| Overall dimension(LxWxH)（mm） | 8000*6800*7500 | 8000*6800*7500 | 8000*6800*7500 |
|
